NUDURA ICF ACCESSORIES

Nudura manufactures a range of accessories for a variety of ICF applications. Click on each accessory to watch a video or visit the Nudura YOUTUBE channel to see the entire playlist.

Nudura ICF Accessories: Headliner

NUDURA ICF BRACKETS

ICF HANGER SYSTEM

ICF Hanger System is used for connecting wood floor joists or wood roof connection system. An inexpensive yet labor-friendly connection system.

Code: NUS-AIHIP-00

45° ICF HANGER INSERT PLATE

The 45 degree ICF Hanger Insert Plate is the same as the standard ICF Hanger Insert Plate but gives a solid floor connection for the inside 90° corners as well as 45° corner connections.

Code: NUS-AIHIP-45

RETROFIT BRACKET

The Retrofit Bracket is used in conjunction with the Stamped Bearing Bracket as an afterthought for attachment to the concrete. This corrects mistakes made from improper installation of the ICF Hanger Insert Plates.

Code: NUS-AIRFB-00

T-FORM SUPPORT BRACKETS

The T-Form Support Brackets aid installers in constructing a simplified T-form joint from scratch when an actual T-form product is not present on-site.

Code: NUS-ATSTP-00
Product Information Sheet
Installation Instructions

TRANSITION BRACKET

The Transition Bracket allows two different form of widths to be connected. Primary use is to create a ledge to support brick or a floor system.

Code: NUS-ATRBR-00
Product Information Sheet

Nudura ICF Accessories: Products

Nudura ICF Accessories: Pro Gallery

NUDURA ICF CLIPS & TIES

V-CLIP

The V-Clip is used to connect a Nudura panel to a concrete floor. It allows the contractor to support the panel without additional materials used on the outside of the wall.

Code: NUS-AVCLP-00

VERTICAL JOINT CLIP

The Vertical Joint Clip is designed to connect the form at the vertical joints. It replaces having to tie wire or tape forms together while providing a solid connection using a minimal amount of labor to install.

Code: NUS-A0VJC-00
Product Information Sheet

BRICK TIES CAST-IN PLACE

Cast-In Place Brick Tie and Pintle. – Enables solid anchorage of veneer masonry through exterior foam to concrete core; tested to meet ASTM D754 (USA) and CSA-A370 (CAN) std. requirements for masonry anchors.

Code: NUS-ABRKG-00 / NUS-ABRKS-00

SURFACE MOUNT BRICK TIES (A) / PINTLE (B)

The T-Form Support Brackets aid installers in constructing a simplified T-form joint from scratch when an actual T-form product is not present on-site.

Code: NUS-ATSTP-00
Product Information Sheet
Installation Instructions

NUDURA FORM-LOCK

FORM-LOCK is used to maintain wall straightness. Other uses include wall alignment for vertical stack joints. Each bundle has 100’ (30m) of FORM-LOCK.

Code: NUS-ABLOK-06
Product Information Sheet

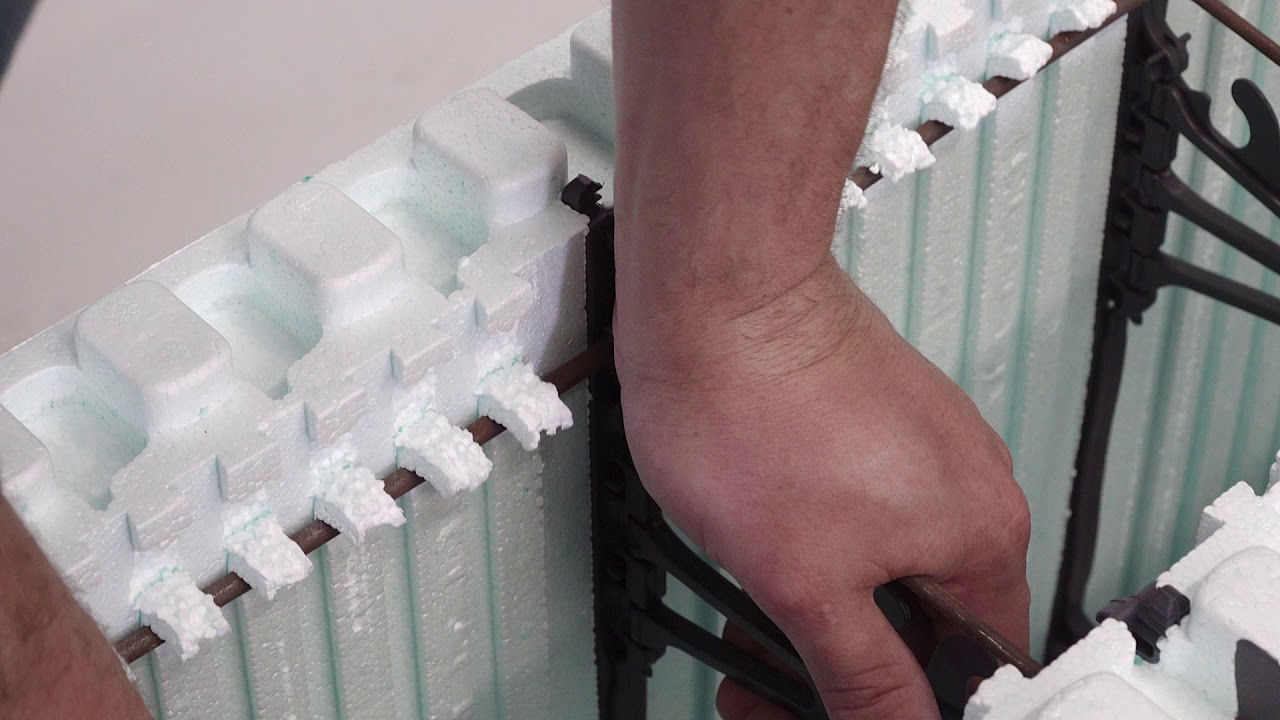

REBAR CLIP

Nudura’s Rebar Clip is specially designed to securely support horizontal reinforcement in the bottom web of the Nudura form during the concrete pour. This clip eliminates the need to tie wire or zip-tie the reinforcement bar in place when it is required to be pulled up into the bottom of the web.

Code: NUS-ARCLP-00
Product Information Sheet

RPD DOVETAIL INSERT

Nudura RPD Dovetail Insert is designed the slide into the dovetails on the inside of the form to support vertical reinforcement where support does not already exist.

Code: NUS-ARPDD-04
Product Information Sheet

Nudura ICF Accessories: Products

Nudura ICF Accessories: Pro Gallery

NUDURA TAPE & FOAM

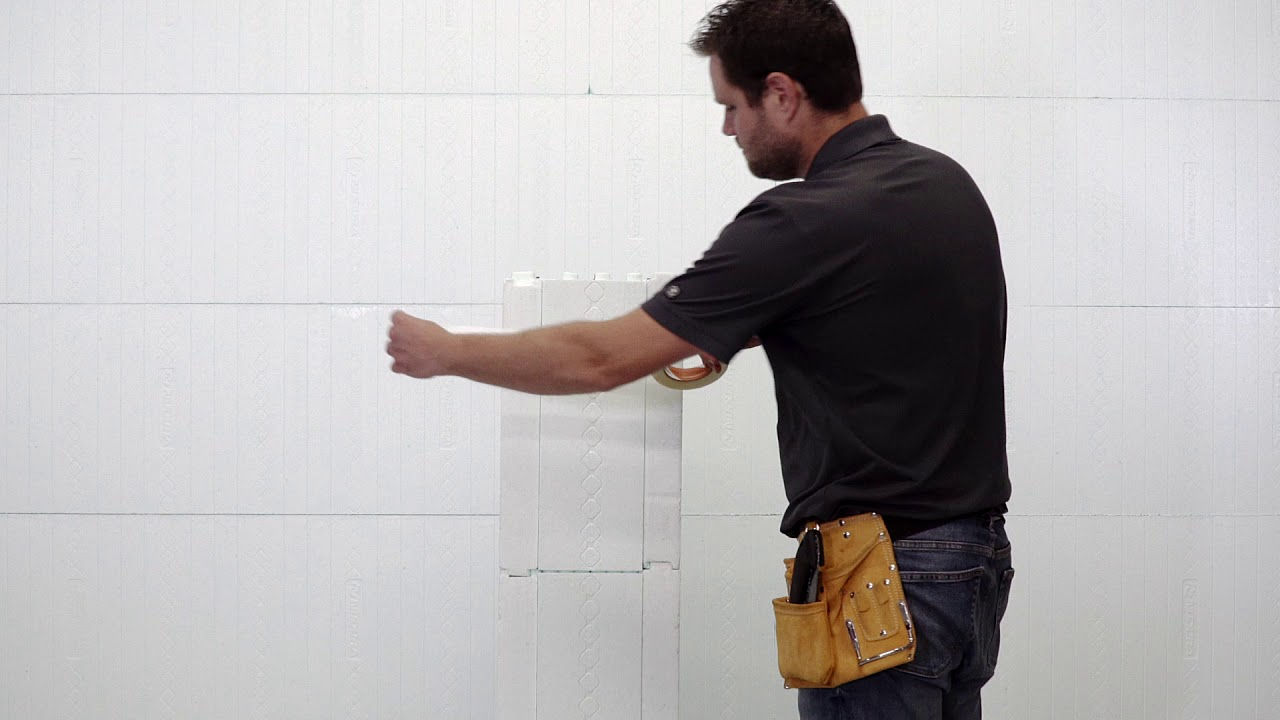

FIBER TAPE

Fiber Tape is used to provide additional EPS support for field cut forms that have more than 4" (100mm) of EPS extending past the last web, brick ledge forms in the corner conditions, and radius panel.

Code: NUS-ATAPE-01
Product Information Sheet

PROTECTIVE TAPE

The 4" (100mm) Protective Tape is used for covering the interlock at the top of a wall to prevent concrete from flowing into the sockets.

Code: NUS-ATPCL-04

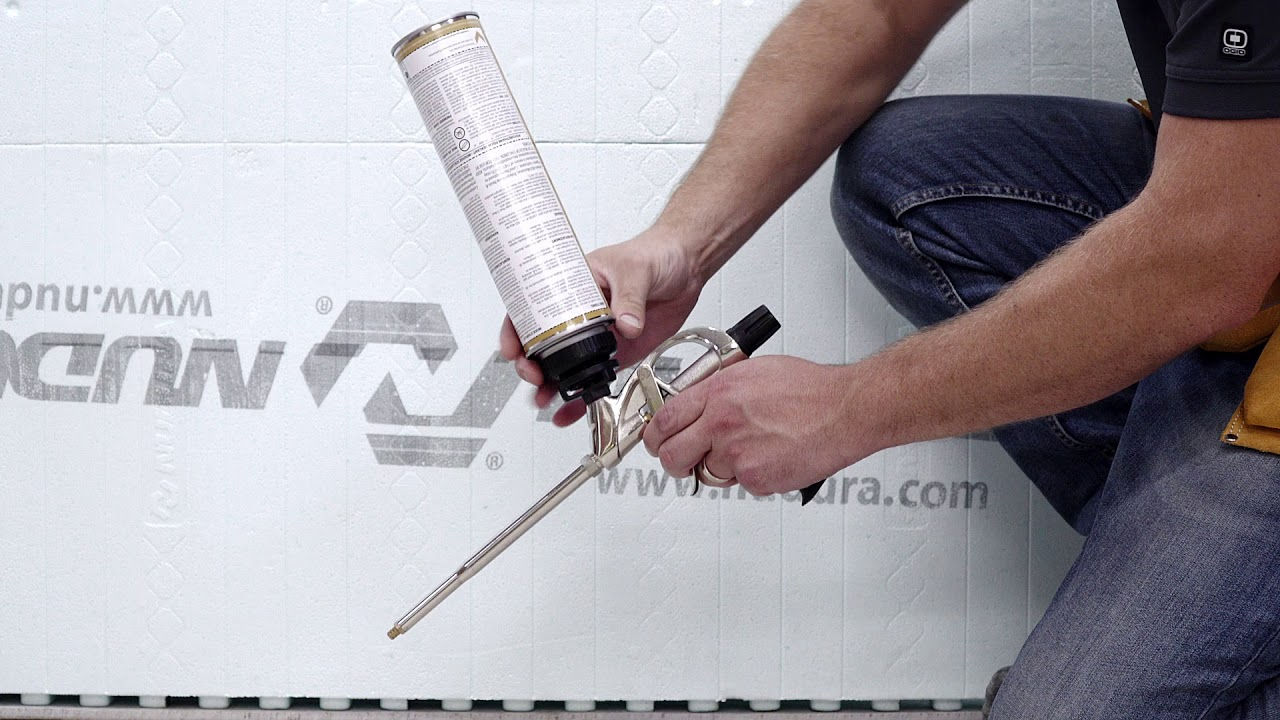

FOAM GUN

The metal handle Foam Gun is compatible with the Nudura Low Expansion Foam 24oz (680g) cans. The Nudura Low Expansion Foam can be used for a number of different tasks on site.

Code: NUS-AGUNM-00
Product Information Sheet

FOAM GUN CLEANER

The Foam Gun Cleaner is used to clean the internal chamber of the foam gun from any hardened foam. Also used on the external surfaces for cleaning the guns.

Code: NUS-AFOCL-00
Product Information Sheet

NUDURA LOW EXPANSION FOAM

The Low Expansion Foam is compatible with Nudura's Expanded Polystyrene (EPS) foam. It can be used for several different tasks on-site, including foaming the forms to the slab or footing, between vertical joints, securing service penetrations, and as insulation around openings.

Code: NUS-AFOAM-00

Product Information Sheet

Nudura ICF Accessories: Products

Nudura ICF Accessories: Pro Gallery

MISCELLANEOUS

NUDURA MEMBRANE PRIMER

The Membrane Primer is designed for use with Nudura's self-adhesive waterproof membranes. This polymer emulsion-based primer is available in a 19L (5 gallons) pail, with a coverage of approximately 650-2000 ft2 (60-190m2) of wall area per container. The Nudura Membrane Primer can help improve the adhesion of Nudura's Waterproofing Membrane in specific areas.

Code: NUS-AMESH-00

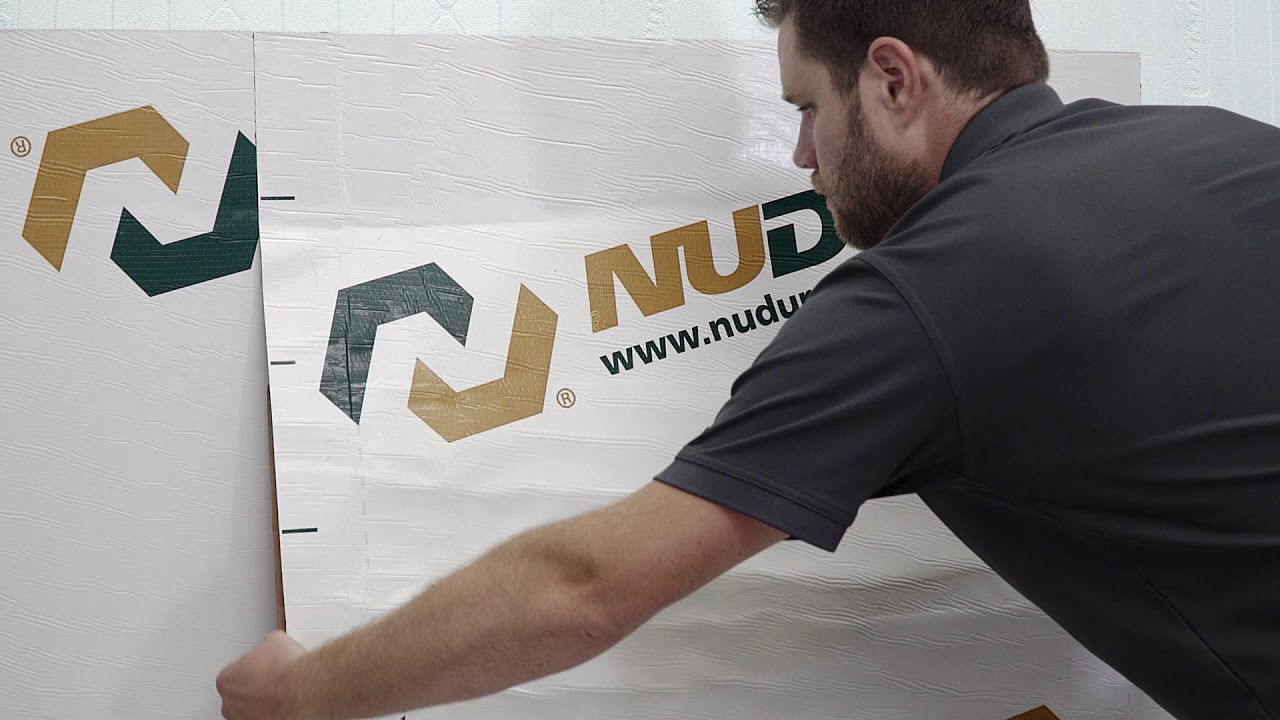

WATERPROOFING MEMBRANE

The Peel & Stick Waterproofing Membrane is used for below grade damp proofing of the Nudura walls. Other uses for the Waterproofing Membrane include drain flashings around window and door openings and brick ledge through wall flashings. Available in summer and winter grades.

Code: NUS-AWPRF-00 / NUS-AWPRF-02
Product Information Sheet

NUDURA PARGING MIX

The NUBASE parge mix is a dry cementitious product that is used to cover exposed EPS that is not covered by an exterior finish. Used in conjunction with Fiber Mesh.

Code: NUS-APARG-00
Product Information Sheet

NUDURA FIBER MESH

The Fiber Mesh gets embedded into the parge coat to give it strength.

Code: NUS-AMESH-00
Product Information Sheet

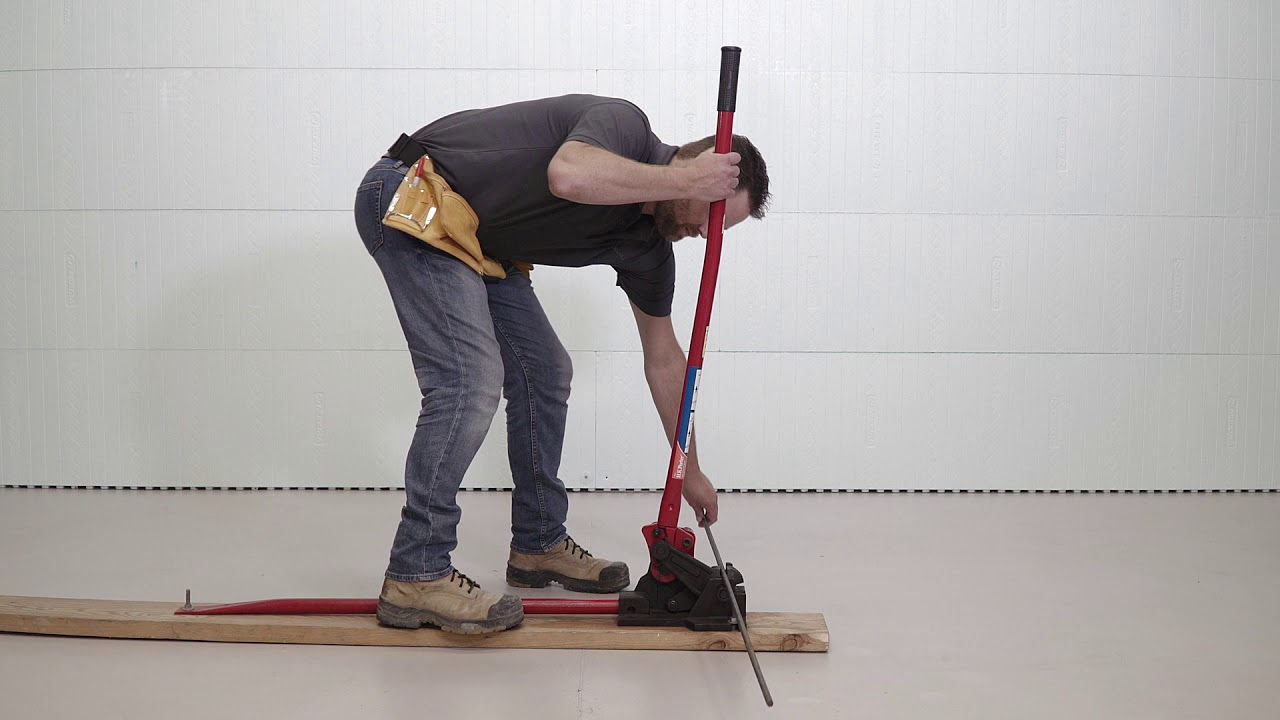

REBAR BENDER CUTTER

The Rebar Cutter is used for cutting and bending reinforcing steel used in the Nudura wall system. It comes with two cutting heads that will cut up to #5 (15M), reinforcing steel. The rollers used for bending the steel are capable of handling up to a #5 (15M) bar.

Code: NUS-AREBC-00

NUDURA EASY BUCK

4-WAY WEB CONNECTOR

The 4-Way Web Connector allows two or more insert webs to be connected and used with the panel system to create wider form sizes. It also can be used to create forms of different shapes and sizes. Increased design flexibility.

Code: NUS-A4XWC-00
Product Information Sheet

HEX HEAD SCREW W/ WASHER

The #10 screw can be used to connect the Nudura Alignment System to the forms. Other uses include attachment of strapping or buck material to concrete. Available in 2" (50mm), 2 1/2" (64mm) and 3" (76mm) lengths. Two 1/4" (6mm), nut drivers, included per pail.

Code: NUS-ASHEX-20 /NUS-ASHEX-25 / NUS-ASHEX-30
Product Information Sheet

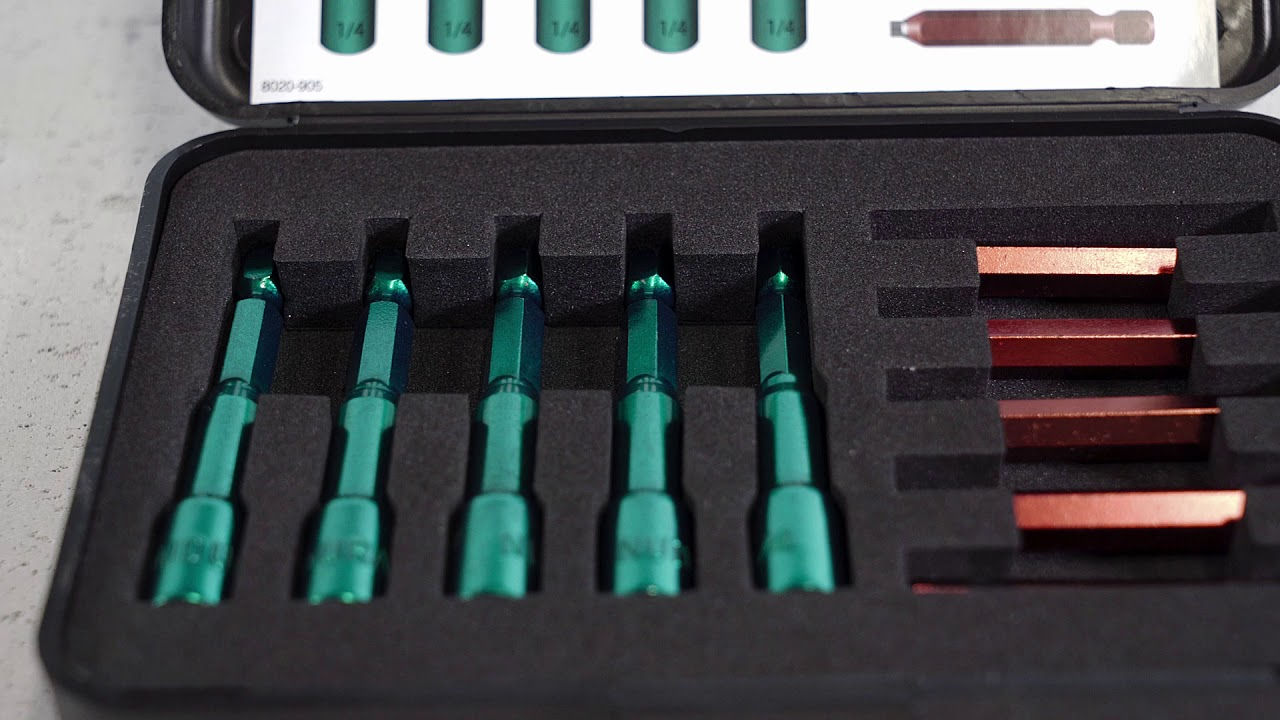

BIT KIT

The Bit Kit is a 10 piece quick change kit that keeps all the bits together in one convenient spot. The kit includes five 1/4" magnetic nut setters which can be used with any of Nudura's Hex Head Screws with Steel Flat washers, as well as five #2 red square driver bits. It is available in packages of 12.

Code: NUS-ABITK-00

FOLDING SAW

The Folding Saw is to ease in the cutting of ICF foam and plastic. This product can be used with any of Nudura's form units. The saw is compact and folds to fit in pockets or tool bags for ease of transport and convenient storage.
Code: NUS-AFSAW-00
